Cover Plate / Back Plate

Cover Plate

This product is currently out of stock and unavailable.

SKU: N/A Category:

Description

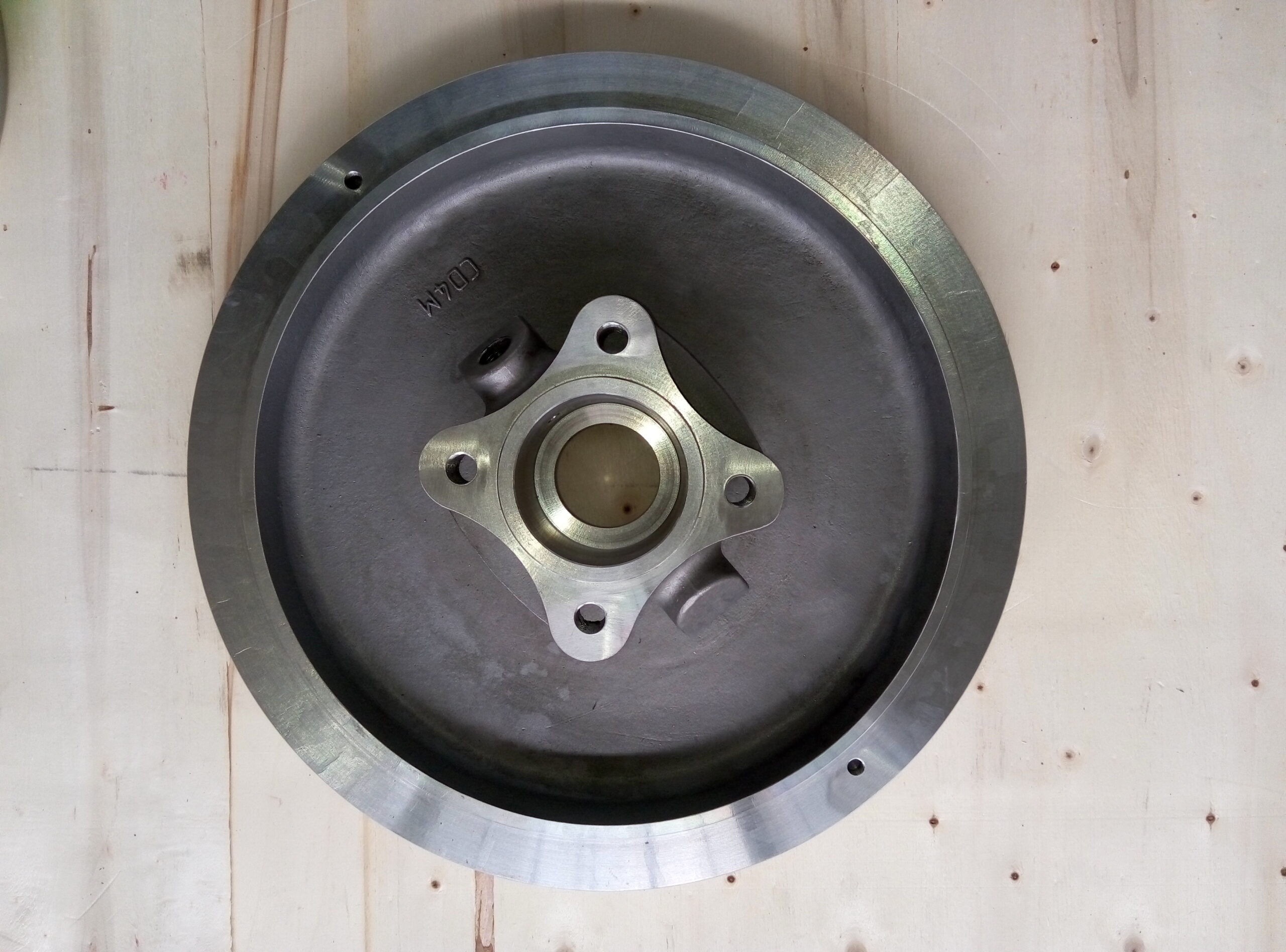

Cover Plate:

We offer our cover plates to fit both the stx and mtx pump designs.  We offer the small bore , large bore, and taper bore.

Materials offered:

WCB:  Weldable Cast iron

CF8M:  Stainless

CD4MCu is a duplex stainless steel, with greater corrosive resistance than standard stainless steel. CD4MCu provides significantly better chloride stress cracking resistance than standard stainless steel, and much better localized corrosion resistance.

CD4MCu allows the pumps to be used in more abrasive applications, and it won’t pit like regular stainless steel, has a better stress/corrosive cracking resistance than standard stainless, and higher strength than standard stainless steel. And compared with regular cast iron material, it is much more resistant to corrosion and much stronger.

The difference in bores ( flow modifiers) can be explained as follows:

Standard Bore:  was designed for packing and also can be used with mechanical seals.  It is ideally used with Water based liquids with flush.

Big Bore:  the big bore chamber was designed to achieve improved lubrication and cooling of the seal.  It is ideally used for the following:  Water based liquids with flush,  Solids greater than 10% with flush, Paper stock with 0 to 5 % with flush, for seal face heat removal.



sizes offered for the st / stx:

6″ Diameter ( six inch)

8″ Diameter ( eight inch)

sizes offered for the mt/ mtx:

8″ Diameter  ( eight inch)

10″ Diameter  ( ten inch)

13″ Diameter  ( thirteen inch)

Disclaimer ***:  Our cover plates are interchangeable with popular brands such as Goulds, Peerless, Summit, and Griswold.  Though we offer high quality replacement parts.  Our parts are aftermarket.  We are not associated with Itt Goulds, Peerless, Summit, or Griswold.

We are working with our factory connections to offer the 15″ ( fifteen) and 17″ (seventeen) inch cover plates.   Let us know if you know if you are in need of these larger sizes.  We can get them but are lead times are much longer than our normal line up of parts.

Additional information

Type

St/Stx, Mt/Mtx, Lt/Ltx

Bore type

Standard, Big, Taper
