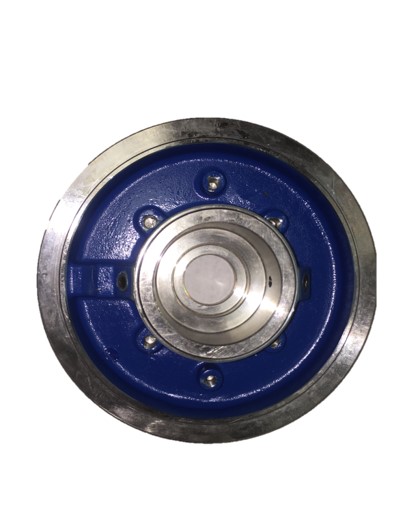

STX: 8″ Cover Plate (Big Bore)

Description

Cover Plate:

We offer our cover plates to fit both the STX and MTX pump designs.  We offer small, large, and taper bore models.

Materials offer: CF8M (Stainless) and other materials upon request.



The difference in bores (flow modifiers) can be explained as follows:

Standard Bore: Designed for packing and also can be used with mechanical seals.  It is ideally used with Water-based liquids with flush.

Big Bore: Designed to achieve improved lubrication and cooling of the seal.  It is ideally used for the following:  Water-based liquids with flush,  Solids greater than 10% with flush, Paper stock with 0 to 5 % with flush, for seal face heat removal.



Sizes offered for the ST / STX:

6″ Diameter (six-inch)

8″ Diameter (eight-inch)

Sizes offered for the MT/ MTX:

8″ Diameter  (eight-inch)

10″ Diameter  (ten-inch)

13″ Diameter  (thirteen-inch)

Disclaimer ***:  Our cover plates are interchangeable with popular brands such as Goulds, Peerless, Summit, and Griswold.  Though we offer high-quality replacement parts.  Our parts are aftermarket.  We are not associated with Itt Goulds, Peerless, Summit, or Griswold.

We are working with our factory connections to offer the 15″ (fifteen-inch) and 17″ (seventeen-inch) cover plates.  Let us know if you are in need of these larger sizes.  We can get them but our lead times are longer than the normal line up of parts.

Additional information

Weight 6.3 kg
Material

DI, 316SS, CD4MCu, Alloy 20
