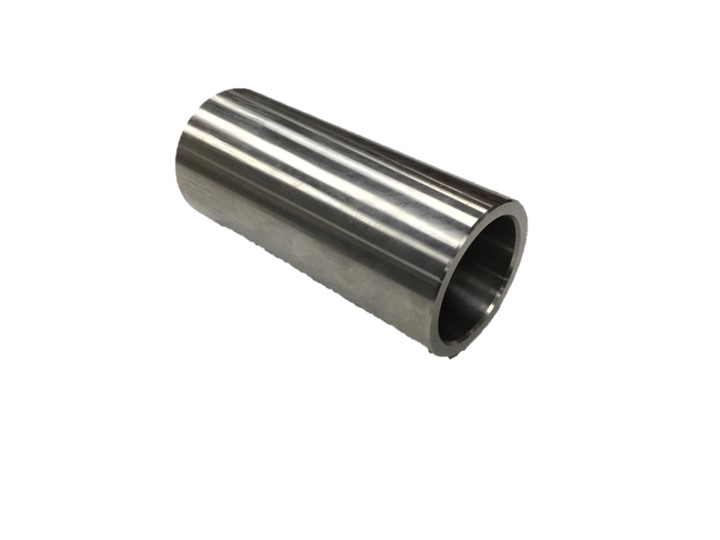

Shaft Sleeve

Our sleeves are made in Texas.

Description

HEAVY DUTY SHAFT sleeve:   This design of our shaft sleeve has been used by major pump makers since 1961.  It comes in a range of materials such as:  4140, 316ss, and even titanium.  Because the ansi design is made with two options.  First solid shaft design, which if you have you have no need for a sleeve.  Second, sleeve design, This is where you will need this sleeve.  The sleeve allows a wearable and replaceable surface.  This is a more effective approach to pump repair.  It allows a more cost-effective and time savings when compared with having to replace a complete shaft assembly.    It is completely interchangeable with over a dozen ansi pump brands and designs.  In fact, many boast that this sleeve is probably the most used ansi pump sleeve in the world.  We are sure they are correct.  In our estimations, there are pumps that are fitted with this type of shaft sleeve in the millions.  With thousands more being sold every month.  Operating in almost every country in the world and even to some of the most remote chemical and petrochemical applications.

(please inquire to find out if your specific pump uses this sleeve)

Suitable for a wide range of service conditions ranging from water and steam to chemicals and corrosive materials.

It is frequently used by the pulp and paper, petrochemical, food processing, wastewater treatment, chemical processing, and power generation industries.

We have combined the best of quality combined with buying in extremely large quantities.  We can save you hundreds off of others pricing.  We also offer discounts for Master distributors and quantity discounts.

The following is a guide to know which sleeve you might have based on the O.D.:

ST/ STX:  1.375″

MT/MTX: 1.750″

LTC: 2.1250″

LTX: 2.50″

Our sleeves are made in Texas.

Disclaimer***:   Though our parts are interchangeable with,  We are not affiliated with ITT Goulds, Peerless, Summit, and or Griswold.  We simply use these names for reference purposes only. We are not an OEM but simply a company that offers fine aftermarket replacement parts.

Additional information

Weight 1.35 kg
Material

316SS, Alloy 20
