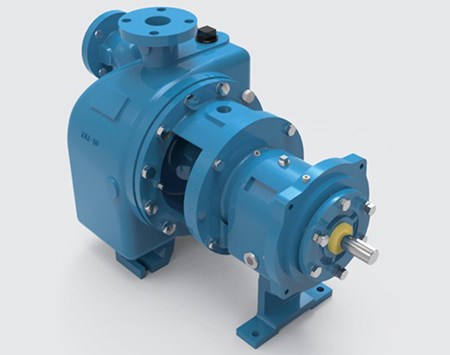

Self Priming ANSI Pumps - MTX
Bearing-Assembly
previous arrow
next arrow

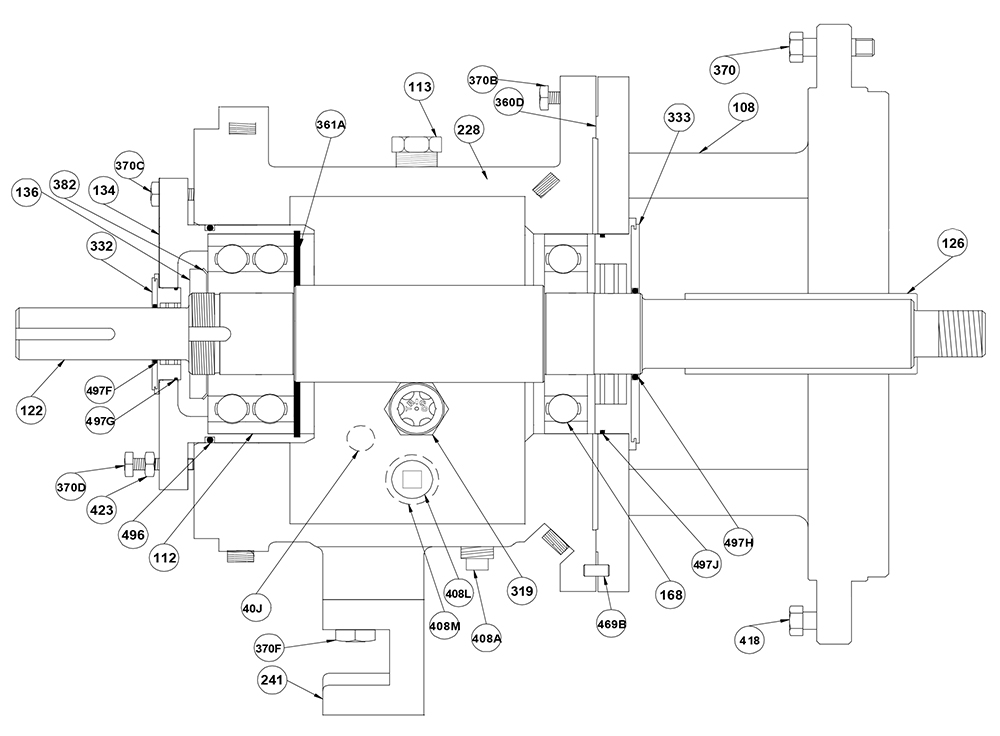

MTX Power Frame Breakdown

Outboard Lab'y seal

Part#: 332

View Part

Thrust bearing locknut

Part#: 136

View Part

Thrust bearing Lockwasher

Part#: 382

View Part

Bearing Housing

Part#: 134

Encloses the bearing, shaft, and thrust bearing.

View Part

Bolts Bearing Housing- Frame

Part#: 370C

View Part

Bearing housing retaining ring

Part#: 361A

View Part

Oil Fill Plug

Part#: 113

View Part

Frame

Part#: 228

Encloses the bearing, shaft, and thrust bearing.

View Part

Capscrew for frame adapter

Part#: 370B

View Part

Gasket, Frame to Adapter

Part#: 360D

View Part

Inboard Lab'y seal

Part#: 333

View Part

Capscrew Frame Case

Part#: 370

View Part

Adapter

Part#: 108

Connects the power frame to the cover plate.

View Part

Sleeve

Part#: 126

High quality, heavy duty, for a wearable and replaceable surface.

View Part

Hex Bolts (Jacking)

Part#: 418

View Part

O-Ring Inboard Lab'y Seal- Rotating

Part#: 497H

View Part

O-Ring Inboard Lab'y Seal- Stationary

Part#: 497J

View Part

Inboard bearing

Part#: 168

Used widely in transmissions etc, can be used in oil or greased, cost effective solution

View Part

Dowel Pin to Attach Adapter to Frame

Part#: 469B

View Part

Oil Drain Plug

Part#: 408A

View Part

Sight glass

Part#: 319

360° view of the condition of your oil

View Part

Finned Tube cooler Inlet plug 1/2" NPT

Part#: 408L

View Part

Finned Tube cooler Outlet plug 1" NPT

Part#: 408M

View Part

Frame foot

Part#: 241

View Part

Capscrew for Foot to Frame

Part#: 370F

View Part

Constant Oiler Plug

Part#: 408J

View Part

Outboard bearing

Part#: 112

Compact, rigid, accommodates tilting, radial and axial loads

View Part

Bearing Housing O-Ring

Part#: 496

View Part

Bearing Housing Hex Jam Nut

Part#: 423

View Part

Bolts Bearing Housing Impeller Adjusting

Part#: 370D

View Part

O-Ring Outboard Lab'y Seal- Stationary

Part#: 497G

View Part

O-Ring Outboard Lab'y Seal- Rotating

Part#: 497F

View Part

Shaft

Part#: 122

A heavy duty shaft in a wide range of materials.

View Part

MTX Liquid End Breakdown

Adapter

Part#: 108

Connects the power frame to the cover plate.

View Part

Capscrew Frame Case

Part#: 370

View Part

Gland Stud Nut

Part#: 355

A simple gland nut to form a seal and prevent leaking.

View Part

Gland Stud

Part#: 353

View Part

Packing Gland

Part#: 107

View Part

Packing

Part#: 106

Easy to install and economical packing seal.

View Part

Lantern Ring

Part#: 105

View Part

Case Gasket (15% Glass-Filled TFE)(FDA Approved)

Part#: 351

View Part

Case

Part#: 100

High quality casings, fully inspected, with our damage free guarantee.

View Part

Stuffing Box - Standard Bore

Part#: 184

Designed for packing and also can be used with mechanical seals.

View Part

Stuffing Box - Taper Bore

Part#: 184

A large bore seal with an internal taper.

View Part

Stuffing Box - Large Bore

Part#: 184

Designed to achieve improved lubrication and cooling of the seal.

View Part

Impeller

Part#: 101

Fully open impellers, centerline discharge, and other unique designs features to meet all pump requirements!

View Part

Impeller O-Ring

Part#: 412A

View Part

Gland Gasket (STD Box)

Part#: 360Q

View Part

Hex Nut (Stuffing Box Stud)

Part#: 357K

View Part

Stud (Stuffing Box)

Part#: 370H

View Part

Seal Options

Part#: 250

View Part

Hex Bolts (Jacking)

Part#: 418

View Part
